Overhead Bin Brackets

Durable, lightweight supports that hold cabin luggage compartments securely to the aircraft frame. They help ensure safety, resist vibration, stress, and long-term fatigue during flight.

Request Technical Review
Process

CNC Milling, 5-Axis Machining, CNC Turning, Wire EDM, Surface Grinding

Materials

Aluminum 7075-T6, Stainless Steel 17-4PH, Titanium Grade 5, Inconel 718, PEEK (Polyetheretherketone)

Tolerance

±0.005mm

Finishes

Hard Anodizing, Passivation, Powder Coating, Electropolishing

Precision CNC Machining

Precision and High Strength Machining for Overhead Bin Brackets

Overhead bin brackets must be both strong and lightweight to support heavy loads without adding excess mass. They are produced with tight tolerances using multi-axis machining to ensure perfect alignment with cabin frames. Each component undergoes rigorous dimensional inspection and load testing to verify its vibration resistance and fatigue performance, ensuring reliable operation throughout the aircraft’s lifespan. See all aerospace brackets.

Get a Quote

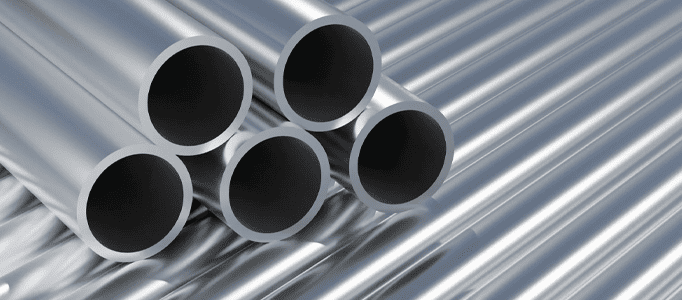

Materials for Overhead Bin Brackets

High-performance materials designed for strength, lightness, and temperature stability.

Aluminum 7075-T6 Titanium Grade 5 Stainless Steel 17-4PH Inconel 718 PEEK (Polyetheretherketone)
Surface Finishes

Finishes designed to protect and extend part life in demanding cabin environments.

  • Hard Anodizing: Creates a strong oxide layer to prevent corrosion and surface wear.
  • Passivation: Cleans and enhances the corrosion resistance of stainless steel.
  • Powder Coating: Adds color and protection from scratches or moisture.
  • Electropolishing: Smooths and brightens metal surfaces for a clean, refined look.
Applications

Aerospace Overhead Bin Brackets

Manufacturing robust structural mounts and connectors ensuring secure bulkhead attachment with optimized strength-to-weight ratios for aircraft interiors.

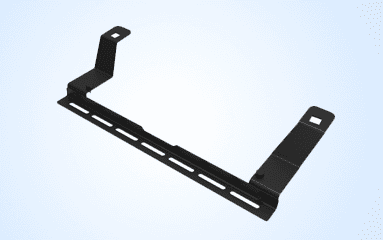

  • Bulkhead Mounting Brackets

    High load capacity ensuring structural crashworthiness compliance.

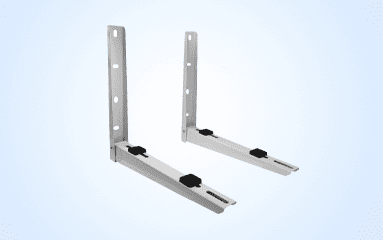

  • Floor Attachment Feet

    Robust interface designed for standard seat track integration.

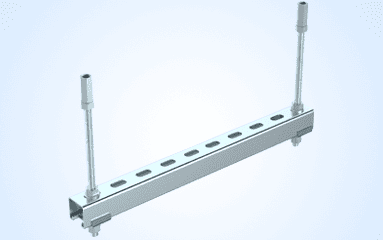

  • Curtain Rail Supports

    Lightweight aluminum machined for seamless aesthetic alignment.

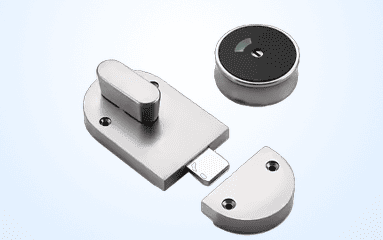

  • Movable Partition Latches

    Precision moving parts ensuring reliable locking mechanisms.

Capabilities

Capabilities of Our Overhead Bin
Bracket Machining

Our advanced machining capabilities ensure exceptional accuracy and consistency across every production batch. Using 5-axis systems, precision cutting tools, and real-time process monitoring, each bracket achieves a dimensional control of ±0.005 mm.

Capabilities also include multi-material machining, contour profiling, and precision surface finishing, all done to meet exact aerospace standards for strength, weight, and long-term stability.

Get a Quote

Technical Parameters

Values

Dimensional Tolerance

±0.005mm

Flatness/Parallelism

≤ 0.01mm per 100mm

Max Part Envelope

550 × 500 × 300mm

Wall Thickness

Minimum 0.6mm

Surface Roughness

Ra 0.8um typical (machined), Ra 0.2um (polished)

Finish Thickness

5–25µm (per spec)

Docs & Certs

AS9100D, ISO 9001, NADCAP, FAI, Material Lot Traceability

Process

Process & Quality

DFM Review – We analyze critical datums, load paths, and propose weight-saving ops.
CAM & Fixturing – 5-axis strategies minimize re-clamps and preserve datum integrity.
In-Process Checks – SPC sampling and probing keep parts on target.
FAI & CMM – Full ballooned reports with 3D model-to-part correlation.
Traceability – Heat numbers and finishing lots linked to each serial.
Recommend

Related Aircraft Interior Components

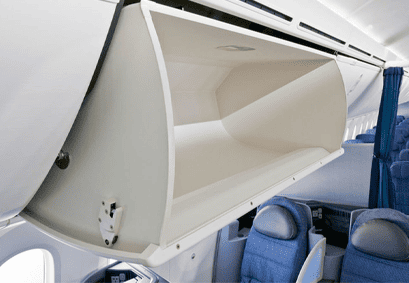

  • Bin Support Frames

    Reinforce upper cabin structures.

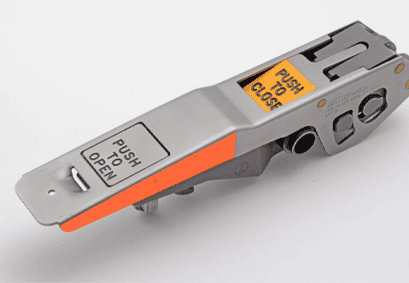

  • Latch Assemblies

    Enable secure closure of luggage compartments.

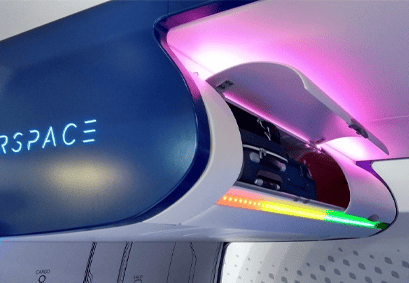

  • Cabin Trim Panels

    Enhance appearance and interior integration.

FAQ

Frequently Asked Questions

These are our common FAQs. If you need specifics: such as machines, quoting, lead time, shipping, quality process, packaging, or payment, please email info@aerocncparts.com.

Our engineers will reply with clear, detailed information.

Can overhead bin brackets be tailored to our cabin design?
Yes, dimensions and mounting interfaces can be customized to match your specific aircraft layout and bin configuration.
What lead time should buyers expect for production?
Standard production takes 4–7 working days, depending on complexity, with expedited options available.
Are certification and traceability included with orders?
Every batch includes full material traceability, inspection reports, and compliance documentation as required for aerospace parts.
Do you accept prototype or low-volume orders?
Yes, both prototypes and small-batch runs can be accommodated before full-scale production approval is granted.
Can we request a specific finish for interior color consistency?
Yes, powder coatings can be matched to airline branding or cabin design for a uniform visual appearance.
