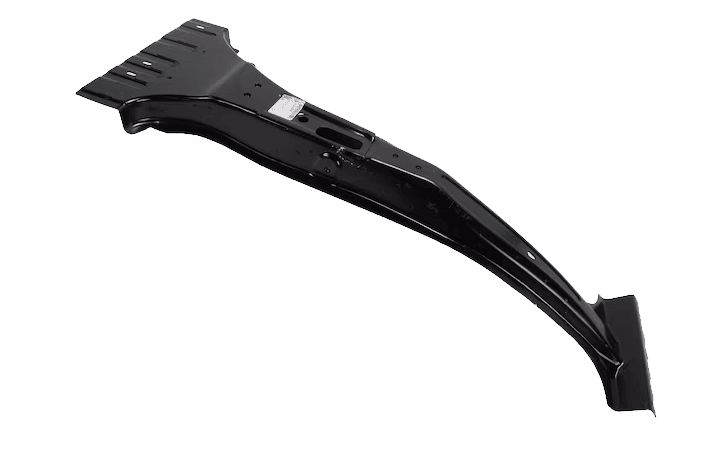

Panel Reinforcements

Lightweight structural parts that strengthen fuselage and wing assemblies, providing stiffness and vibration resistance during flight. They prevent panel deformation and ensure reliable performance under extreme operating conditions.

Request Technical Review
Process

5-Axis CNC Machining, Precision Milling, EDM, Surface Grinding

Materials

Aluminum 7050, Titanium Grade 5, Stainless Steel 15-5PH, Inconel 718, Beryllium Copper

Tolerance

±0.005mm

Finishes

Hard Anodizing, Passivation, Shot Peening, Chemical Conversion Coating

Precision CNC Machining

Tight Tolerance Panel Reinforcement Machining

Producing panel reinforcements requires exact accuracy, fatigue-resistant materials, and consistent tolerance control. High-precision machining methods, thorough inspection, and stress analysis ensure structural balance and long-term stability. Each part achieves dependable load distribution and alignment for demanding aerospace structures.

Get a Quote
Materials for Panel Reinforcements

These materials provide the perfect mix of strength, corrosion resistance, and reduced weight for aerospace panel assemblies:

Aluminum 7050-T7451 Titanium Grade 5 (Ti-6Al-4V) Stainless Steel 15-5PH Inconel 718 Beryllium Copper (C17200)
Surface Finishes

Each surface treatment enhances protection against fatigue, oxidation, and corrosion while improving service longevity.

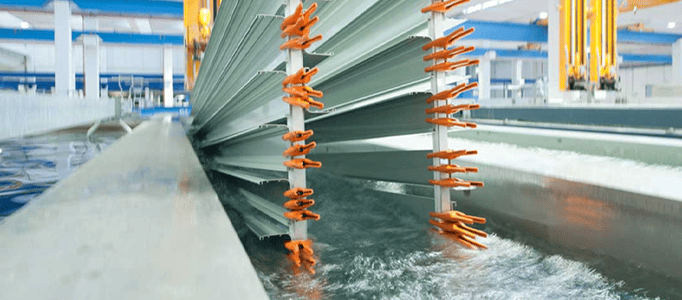

  • Hard Anodizing: Increases surface hardness and wear resistance.
  • Passivation: Creates a passive film for corrosion protection on steels.
  • Shot Peening: Induces compressive stress to resist fatigue cracks.
  • Chemical Conversion Coating: Improves corrosion protection and paint adhesion.
Applications

Aerospace Panel Reinforcements

Manufacturing lightweight structural stiffeners and frames designed to enhance rigidity and prevent buckling in thin-walled aircraft skins and interiors.

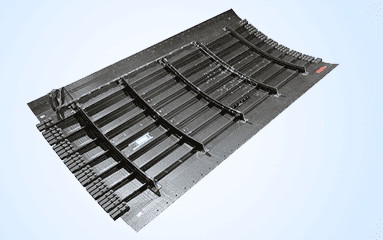

  • Fuselage Skin Stiffeners

    Precision contouring matching aerodynamic curvatures for structural rigidity.

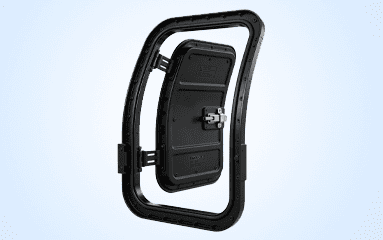

  • Access Door Frames

    Restoring structural integrity around critical maintenance access cutouts.

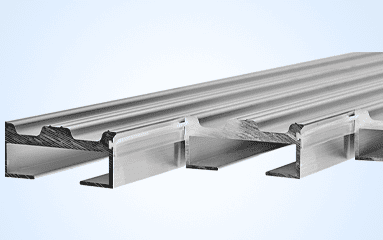

  • Cargo Floor Beams

    High load-bearing capacity supporting heavy cargo configurations.

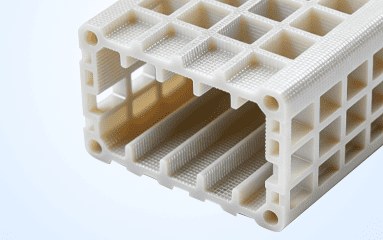

  • PEEK Interior Ribs

    Lightweight support offering thermal isolation and vibration dampening.

Capabilities

Capabilities of Our Panel Reinforcement CNC Machining

Advanced multi-axis machining systems achieve a precision of ±0.005mm, maintaining repeatable accuracy across all surfaces and contours. Tight tolerance verification through coordinate measurement ensures reliability.

Each reinforcement part undergoes mechanical validation, fatigue testing, and processes approved by NADCAP and AS9100, along with traceable inspection, to ensure smooth integration within aerospace panel structures.

Get a Quote

Technical Parameters

Values

Dimensional Tolerance

±0.005mm

Flatness/Parallelism

≤ 0.01mm per 100mm

Max Part Envelope

700 x 700 x 350mm

Min Wall Thickness

0.8mm (material dependent)

Surface Roughness

Ra 0.8um typical (machined), Ra 0.2um (polished)

Finish Thickness

10–25µm (anodize or coating)

Docs & Certs

Full lot traceability, mechanical test reports, and inspection records

process

Process & Quality

DFM Review – We analyze critical datums, load paths, and propose weight-saving ops.
CAM & Fixturing – 5-axis strategies minimize re-clamps and preserve datum integrity.
In-Process Checks – SPC sampling and probing keep parts on target.
FAI & CMM – Full ballooned reports with 3D model-to-part correlation.
Traceability – Heat numbers and finishing lots linked to each serial.
recommend

Related Aerospace Components

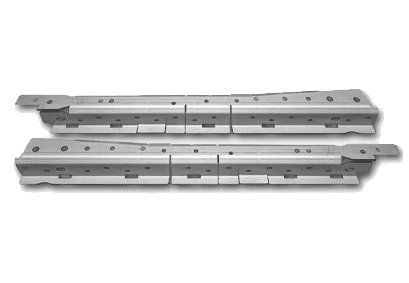

  • Frame Stiffeners

    Improve strength in aircraft body panels.

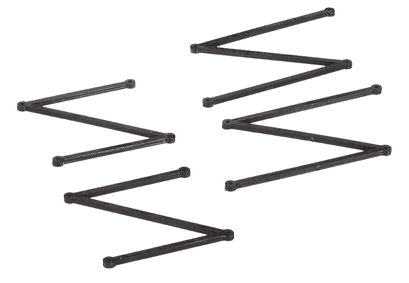

  • Wing Braces

    Maintain wing shape under dynamic loads.

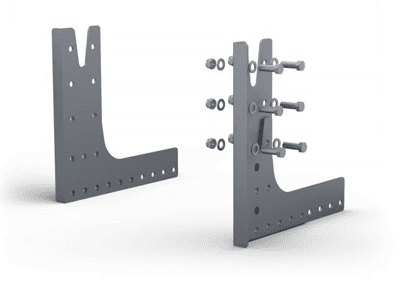

  • Bulkhead Supports

    Strengthen pressure-bearing sections of the fuselage.

FAQ

Frequently Asked Questions

These are our common FAQs. If you need specifics: such as machines, quoting, lead time, shipping, quality process, packaging, or payment, please email info@aerocncparts.com.

Our engineers will reply with clear, detailed information.

Why are panel reinforcements critical in aircraft structures?
They strengthen thin fuselage panels, maintain stiffness, and prevent buckling under aerodynamic loads or pressurization cycles.
What makes Beryllium Copper a good choice for reinforcements?
It offers an excellent combination of strength, thermal stability, and fatigue resistance, making it ideal for parts needing both mechanical durability and conductivity.
How is surface roughness controlled during machining?
Machining parameters and polishing processes are optimized to achieve a Ra value of 0.8µm or better, ensuring aerodynamic smoothness and a perfect fit.
Can these reinforcements be integrated into composite structures?
Yes, they can be joined or bonded to composites using compatible surface coatings to enhance adhesion and prevent galvanic corrosion.
What inspection methods verify accuracy and consistency?
CMM scanning, ultrasonic testing, and microscopic dimensional analysis are used to verify alignment, geometry, and integrity prior to assembly.
