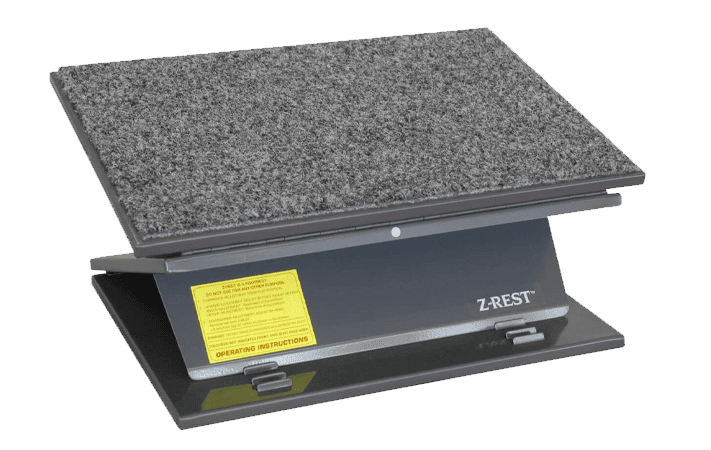

Footrest Structures

Lightweight, durable supports ensure passenger comfort and stability during flights. Resistant to vibration and stress under repeated loads, maintaining consistent performance and balance across varying cabin environments.

Request Technical Review
Process

CNC Milling, 5-Axis CNC Machining, Laser Cutting, CNC Turning

Materials

Aluminum 7075, Titanium Grade 2, Stainless Steel 316, Magnesium Alloy AZ31

Tolerance

±0.01mm

Finishes

Hard Anodizing, Powder Coating, Shot Peening, Passivation

Precision CNC Machining

Precision and High-Quality Machining for a Reliable Footrest Structure

Footrest structures require accurate shaping, consistent geometry, and dimensional stability for ergonomic use and long-term cabin reliability. Precision 5-axis machining, CAD/CAM programming, and CMM inspection ensure every component meets aircraft safety standards, resisting fatigue and maintaining alignment through years of passenger movement and load variation.

Get a Quote

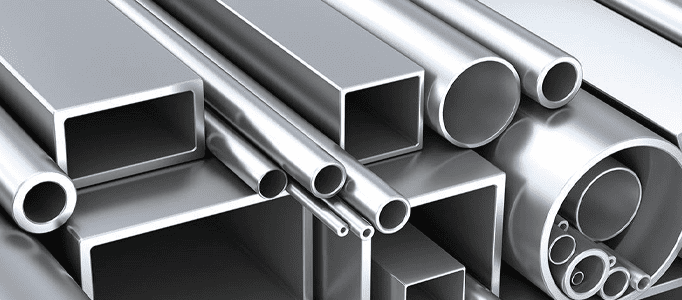

Materials for Footrest Structures

Advanced aerospace-grade materials strike a balance between weight, durability, and fatigue strength, ensuring continuous performance in demanding cabin environments.

Aluminum 7075-T6 Stainless Steel 316 Titanium Grade 2 Magnesium Alloy AZ31 Carbon Fiber Composite

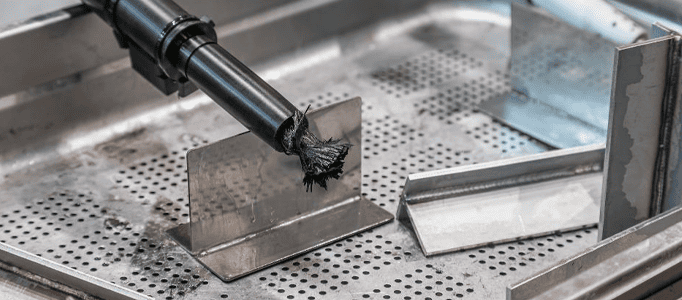

Surface Finishes

Surface treatments improve protection, strength, and fatigue life under repetitive loading cycles.

  • Hard Anodizing: Enhances hardness and corrosion protection.
  • Powder Coating: Provides decorative finish and abrasion resistance.
  • Shot Peening: Increases fatigue resistance and mechanical durability.
  • Passivation: Strengthens stainless steel against oxidation and contaminants.
Applications

Aerospace Footrest Structures

Manufacturing robust, lightweight mechanical assemblies designed for passenger ergonomic comfort and reliable deployment in aircraft seating systems.

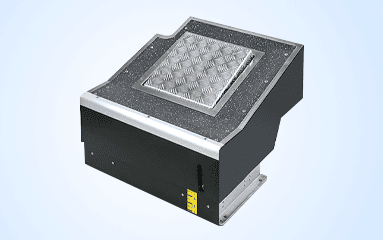

  • Extension Linkage Arms

    High strength-to-weight ratio ensuring reliable cyclic deployment.

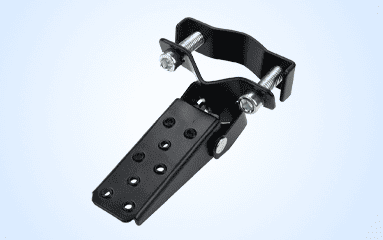

  • Foot Pedal Frames

    Ergonomic geometry machined for durability and weight reduction.

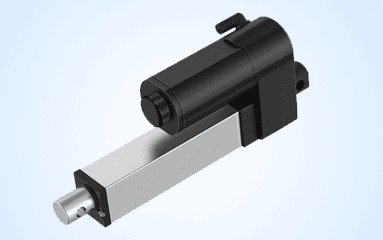

  • Actuation Pivot Housings

    Precision tolerances ensuring smooth operation and locking security.

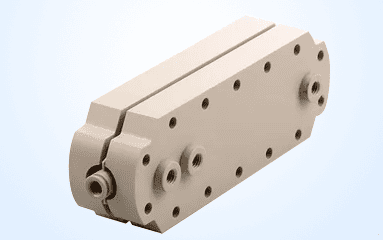

  • PEEK Slide Guides

    Self-lubricating properties reducing maintenance and operational noise.

Capabilities

Capabilities of Our Footrest Structure CNC Machining

Complex multi-axis machining centers achieve a precision of ±0.005 mm with stable alignment and high repeatability. Our team of experts, combined with our high-quality surface finishing options and extensive material variety, ensures an AS9100D and ISO 9001-approved production process.

Through CAD/CAM optimization, CMM inspection, and fatigue analysis, each component maintains reliable mechanical performance, a perfect fit, and a smooth finish, ensuring optimal strength, corrosion protection, and endurance under the demanding operational cycles of heavy-duty aerospace applications.

Get a Quote

Technical Parameters

Values

Dimensional Tolerance

±0.01mm

Flatness/Parallelism

≤0.02 mm per 100 mm

Max Part Envelope

500 × 400 × 200 mm

Min Wall Thickness

0.8mm (material dependent)

Surface Roughness

Ra 0.8um typical (machined), Ra 0.2um (polished)

Finish Thickness

5–25 µm (depending on finish)

Docs & Certs

FAI, PPAP, CMM, material certs, full lot traceability

process

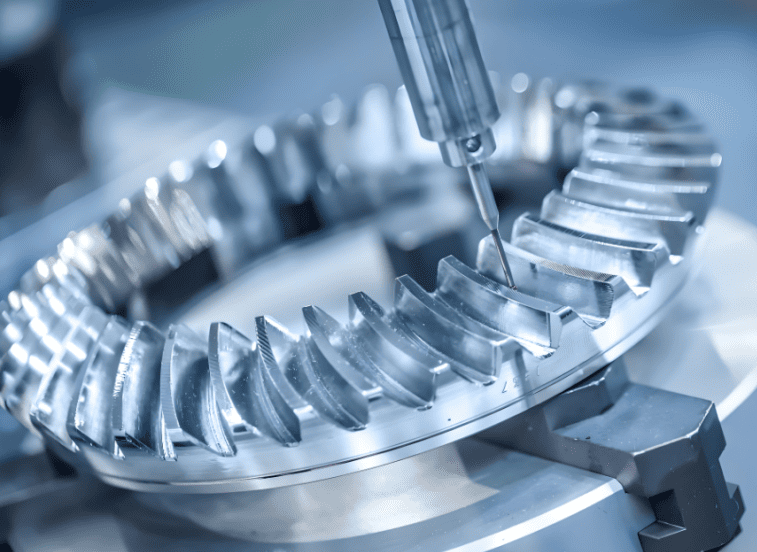

Process & Quality

DFM Review – We analyze critical datums, load paths, and propose weight-saving ops.
CAM & Fixturing – 5-axis strategies minimize re-clamps and preserve datum integrity.
In-Process Checks – SPC sampling and probing keep parts on target.
FAI & CMM – Full ballooned reports with 3D model-to-part correlation.
Traceability – Heat numbers and finishing lots linked to each serial.
recommend

Related Aerospace Components

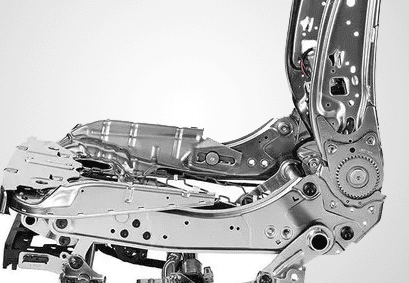

  • Seat Frames

    Provide structure and connection for passenger seating systems.

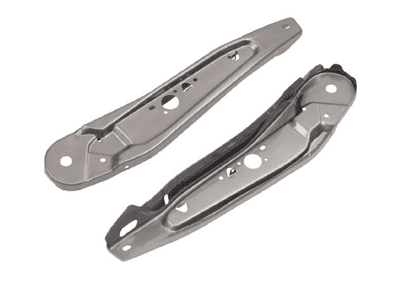

  • Armrest Assemblies

    Deliver comfort and ergonomic balance during long flights.

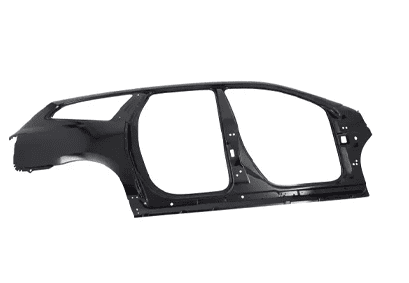

  • Panel Reinforcements
