Airfield RF Antenna Assembly

Lightweight and precision-balanced antenna structures for reliable frequency transmission and signal reception across aerospace operations. Capable of withstanding vibration, temperature changes, and environmental exposure.

Request Technical Review
Process

CNC Milling, CNC Turning, 5-Axis Machining, EDM, Laser Cutting

Materials

Aluminum 6061, 7075, Stainless Steel 316, Titanium Grade 5, Copper Alloy

Tolerance

±0.005 mm

Finishes

Alodine, Passivation, Powder Coating

Precision CNC Machining

High-Accuracy RF Antenna Assembly with Complete Traceability

Producing airfield RF antenna assemblies demands precise frequency alignment, dimensional accuracy, and environmental durability.

Supported by AS9100D, ISO 9001, and NADCAP-approved finishing, every component undergoes FAI verification to ensure signal stability, corrosion resistance, and repeatable quality across all production batches.

Get a Quote
Material and Surface Finishes for RF Antenna Assembly

Our selection of materials ensures signal reliability, low weight, and long-term resistance against oxidation and wear.

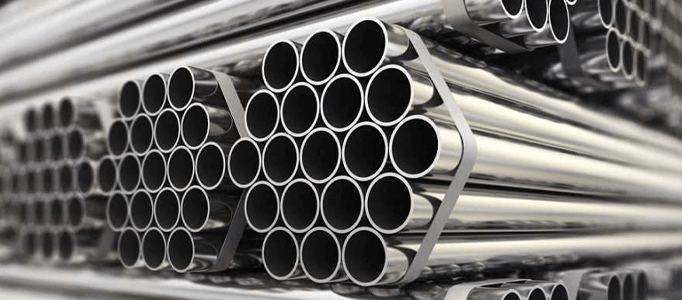

Aluminum 7075-T6 Aluminum 6061-T651 Stainless Steel 316 Titanium Grade 5 Copper Alloy C110
Surface Finishes

Protective and performance-oriented coatings designed for conductivity, corrosion protection, and smooth signal reflection.

  • Alodine: Ensures conductive protection against oxidation and moisture.
  • Passivation enhances the corrosion resistance and surface purity of stainless steel.
  • Powder Coating: Adds weatherproof protection and improved mechanical durability.
  • Electropolishing provides a clean, bright, and smooth finish, enhancing current flow.
Applications

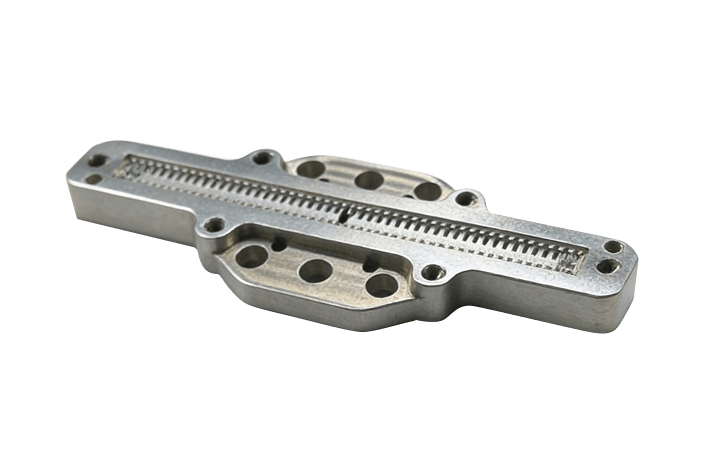

Airfield RF Antenna Assembly

Manufacturing ruggedized structural components and precision insulators ensuring reliable signal transmission and extreme weather resistance for aviation ground systems.

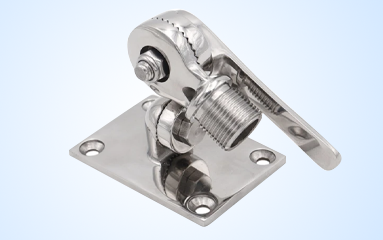

  • Antenna Base Pedestals

    Corrosion-resistant alloys providing stable ground installation support.

  • Radiating Element Supports

    Precision geometry maintaining accurate frequency signal transmission.

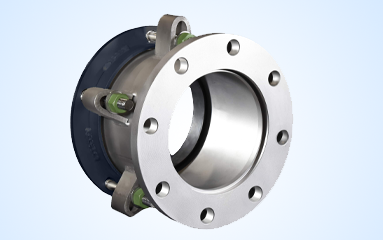

  • Mounting Flange Adapters

    High strength interface ensuring secure mast attachment.

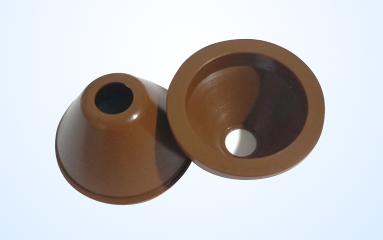

  • PEEK Insulator Caps

    High dielectric strength with superior environmental UV resistance.

Capatibilities

Capabilities of Our RF Antenna Assembly Machining

Advanced machining centers and inspection systems ensure ultra-tight tolerances and repeatable precision for airfield RF antenna assemblies.

Certified to AS9100D, ISO 9001, and NADCAP, our workflow supports full material traceability, and FAI verification, meeting aerospace communication performance and reliability standards.

Get a Quote

Technical Parameters

Specifications / Values

Dimensional Tolerance

±0.005mm (Critical RF interfaces), ±0.01mm (General features)

Flatness/Parallelism

≤ 0.01mm per 100mm (Crucial for grounding & sealing)

Max Part Envelope

800 x 600 x 400mm (Accommodates large antenna bases/reflectors)

Min Wall Thickness

0.5mm (Optimized for weight reduction & heat dissipation)

Surface Roughness

Ra 0.4µm (RF internal cavities), Ra 0.8µm (External surfaces)

Coating Thickness

Class 1A / Class 3 (MIL-DTL-5541) or 20–50µm (Powder Coating)

process

Process & Quality

DFM Review: Engineering review analyzing load paths and datums.
CAM & Fixturing: Precision fixture design minimizing machining clamping errors.
In-Process Checks: Active process control via probing and sampling.

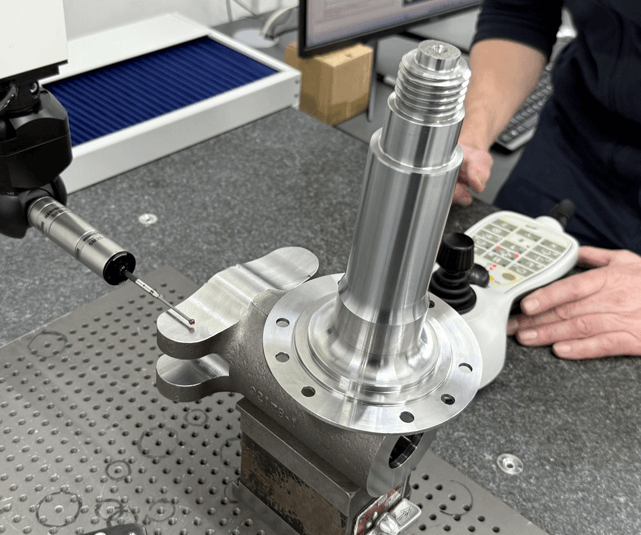

FAI & CMM: Comprehensive FAI reports verifying dimensional conformity.
Traceability: Full lot traceability from certified billet to delivery.
recommend

Related Aerospace Components

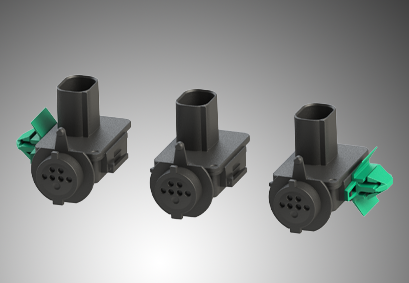

  • Antenna Mount Brackets

    Support secure installation and signal alignment.

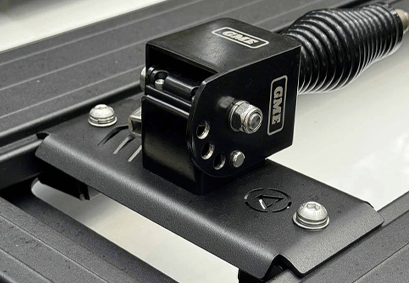

  • Waveguide Housings

    Channel RF signals with low loss.

  • Sensor Modules

    Integrate seamlessly with communication systems.
